Small format, high performance

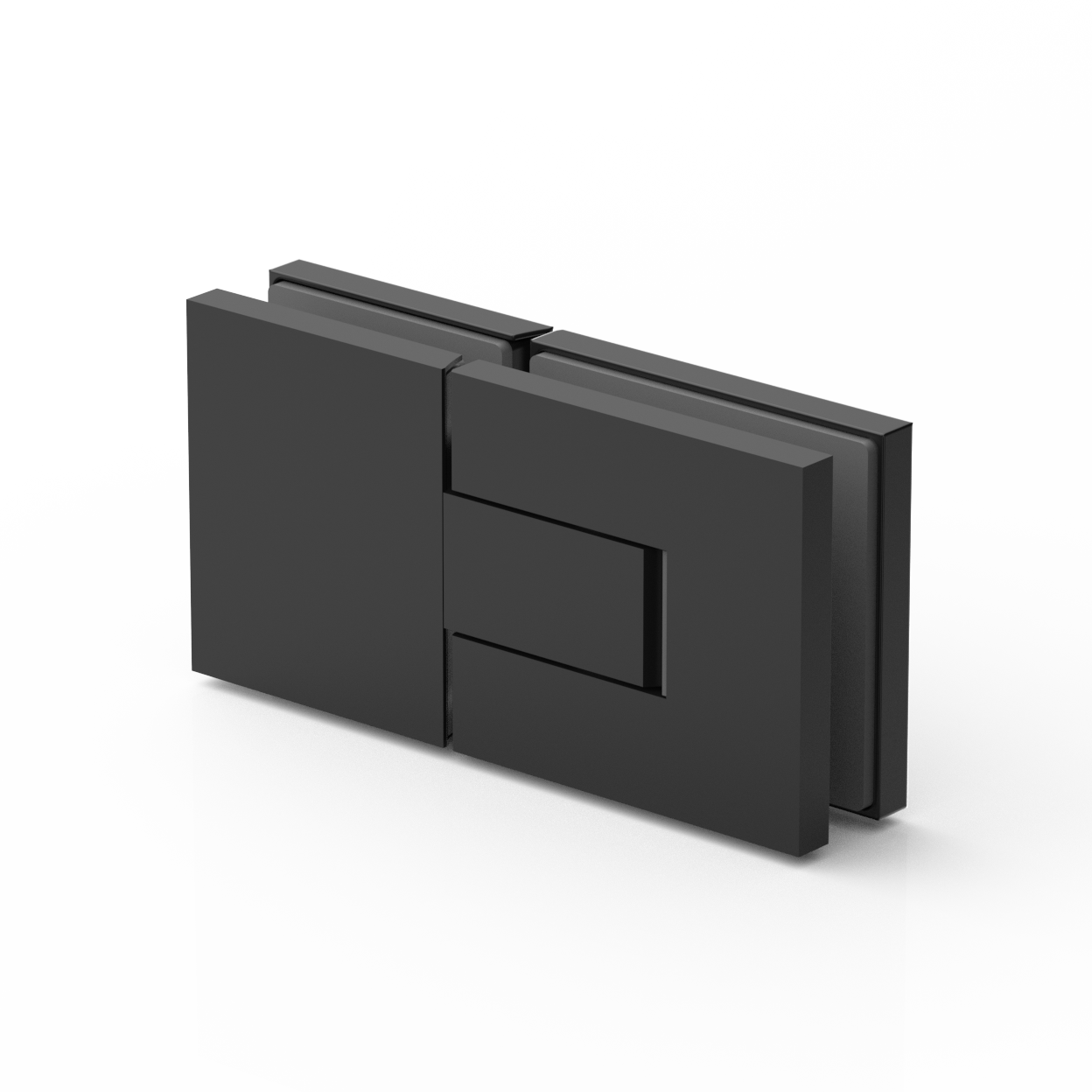

The shower door hinge combines innovative technology and sophisticated design to meet the highest standards in modern shower systems. The hinge is designed for a 97° opening angle on both sides, ensuring convenient handling and flexibility of use. This swing door hinge is suitable for both glass-to-wall and glass-to-glass applications.
Another outstanding feature is the optimized design for use without sealing profiles, which achieves minimized gap dimensions. This improves the appearance and reduces maintenance effort. The innovative cap technology makes installation considerably easier, while the concealed zero-position adjustment ensures precise adjustment without compromising the design.

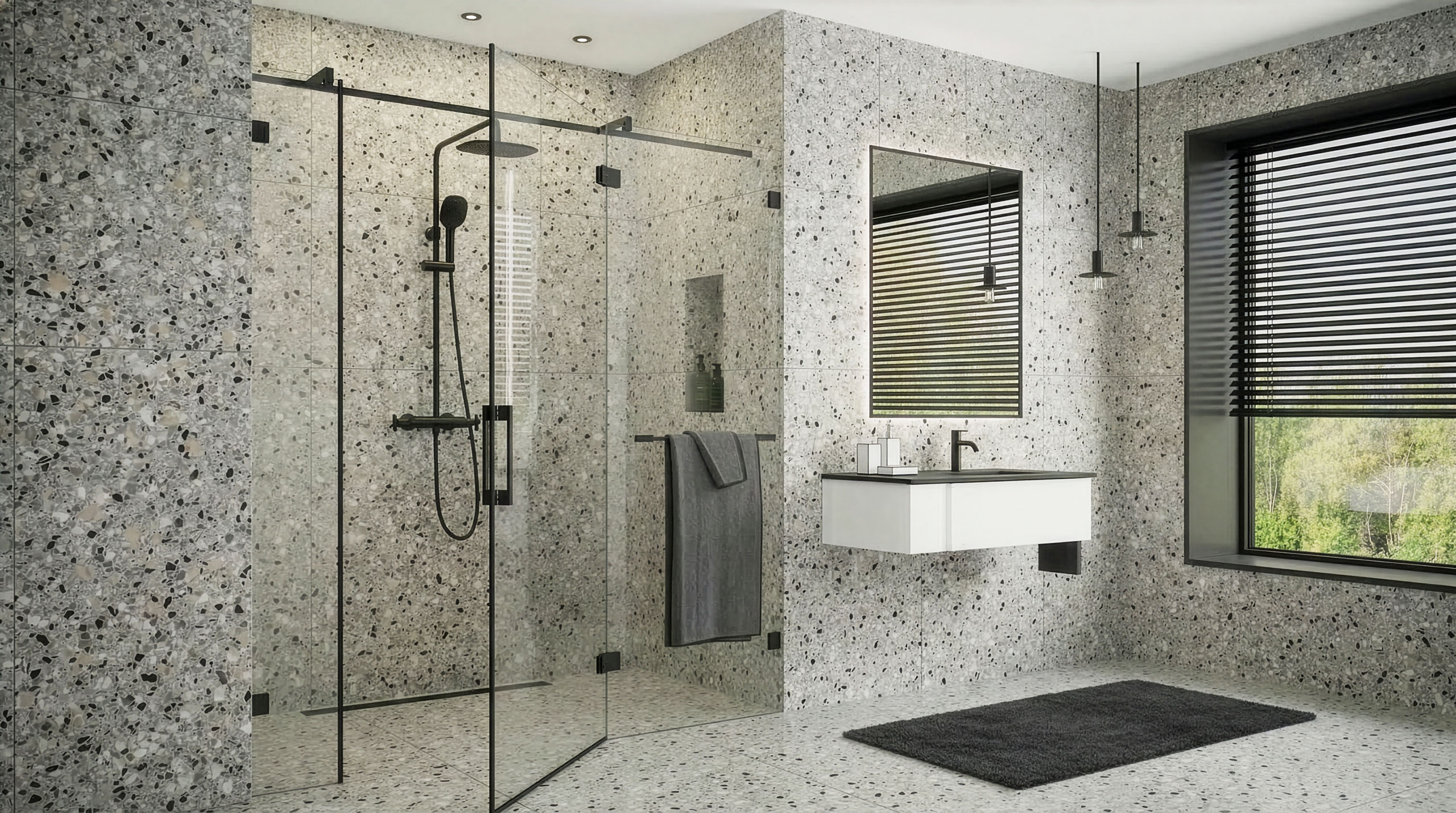

FLAMEA+ – uncompromising and strong
The FLAMEA+ series was developed for showers of the top class. The optimum installation situation: glass showers in XL-format. FLAMEA+ meets all aesthetic and functional requirements for projects and private homes.
- 90° shower swing door hinge
- self-closing during the last 15 - 20°
- centered pivot-point, therefore usage as swing door possible
- fully adjustable closed position
- loading capacity (2 hinges): 45 kg, corresponding to a glass door with the dimension 900 x 2000 mm and a glass thickness of 10 mm
- optimized for installation without sealing profile
- concealed screws
- minimized gap distance
- the durability of the hardware has been tested internally according to DIN EN 14428:2015 5.5.
For top-mounting integration in the floor construction top-mounting on balconies or balustrade walls applicable as end frame for screed, offering maximum transparency with two or more glass panels, no connection of the handrail to a substructure is necessary trouble-free outdoor applications made possible by a thick anodized protective layer. glass panel widths up to 6 m possible glass panel heights up to 1500 mm, applicable for balconies over 12 m glass panels with holes for handrail supports are permissible glass insert depth = 100 mm glass type = lsg with ftg or ftg-h glass thicknesses = 16,76 / 17,52 / 20,76 und 21,52 mm glass panels are linear supported
For balustrade and staircase installation fascia mounted on balconies and staircases with two or more glass panels, no connection of the handrail to a substructure is necessary trouble-free outdoor applications made possible by a thick anodized protective layer. applicable for french balconies glass panel widths up to 6 m possible glass panel heights up to 1500 mm, applicable for balconies over 12 m glass panels with holes for handrail supports are permissible glass insert depth = 100 mm glass type = lsg with ftg or ftg-h glass thicknesses = 16,76 / 17,52 / 20,76 und 21,52 mm glass panels are linear supported
For balustrade and staircase installation fascia mounted on balconies and staircases with two or more glass panels, no connection of the handrail to a substructure is necessary trouble-free outdoor applications made possible by a thick anodized protective layer. applicable for french balconies glass panel widths up to 6 m possible glass panel heights up to 1500 mm, applicable for balconies over 12 m glass panels with holes for handrail supports are permissible glass insert depth = 100 mm glass type = lsg with ftg or ftg-h glass thicknesses = 16,76 / 17,52 / 20,76 und 21,52 mm glass panels are linear supported
For floor construction top-mounted on balconies or balustrade walls completely submersible in the floor for maximum transparency as room divider with two or more glass panels, no connection of the handrail to a substructure is necessary trouble-free outdoor applications made possible by a thick anodized protective layer. glass panel widths up to 6 m possible glass panel heights up to 1500 mm, applicable for balconies over 12 m glass panels with holes for handrail supports are permissible glass insert depth = 100 mm glass type = lsg with ftg or ftg-h glass thicknesses = 16,76 / 17,52 / 20,76 und 21,52 mm glass panels are linear supported
Your Partner for Architecture with Glass and Metal
We develop, manufacture and supply high-quality hardware and systems for structural glass construction. In our in-house development department we create innovative, solution-oriented products for
- balustrade and overhead glazing
- glass canopies and facade constructions
- solutions for interior design
- bathrooms with all-glass showers
Shower Fixtures from Pauli + Sohn
Manufactured in Germany
Pauli + Sohn, based in the region of Oberberg, specializes in the development and production of hardware for glass constructions. As a family business in the second generation, constant development and consistent customer orientation is our highest goal.
The materials and the special processing make our shower fixtures a long lasting and sustainable product. Concurrently, Pauli + Sohn attaches great importance to innovation and modern production technologies. Only high-quality materials are used, which are processed in detail and exclusively assembled by hand.
Pauli + Sohn also takes sustainability seriously: residual raw materials are recycled, and water required for production is recycled in an in-house filter system.
